Description
Intelligent charger suitable for: • Up to two 3.6V/3.7V lithium ion cells in sizes 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, 26650, 32650.
• And/or AAAA, AAA, AA, A, SC, C, D size NiMH batteries.
AC or DC charge input. Adapters included.
Independent channels with high definition LCD screen displays charging current, battery voltage and capacity.
Intelligently recognise / display / charge NiMH and LiIon batteries at the same time.
• Three-phase charging (TC-CC-CV) for LiIon
• Pulse charging for NiMH
Input power: 12VDC 2.0A
Cut-off Voltage: 4.2V (LiIon); 1.45V (NiMH)
Four selectable charge currents: 0.25A, 0.5A, 1.0A and fast 2.0A.
0V low battery activation.
Reverse polarity and short circuit protection.
Overheat protection as well as effective heat dissipation design and fire resistant ABS case.
Product Contents:

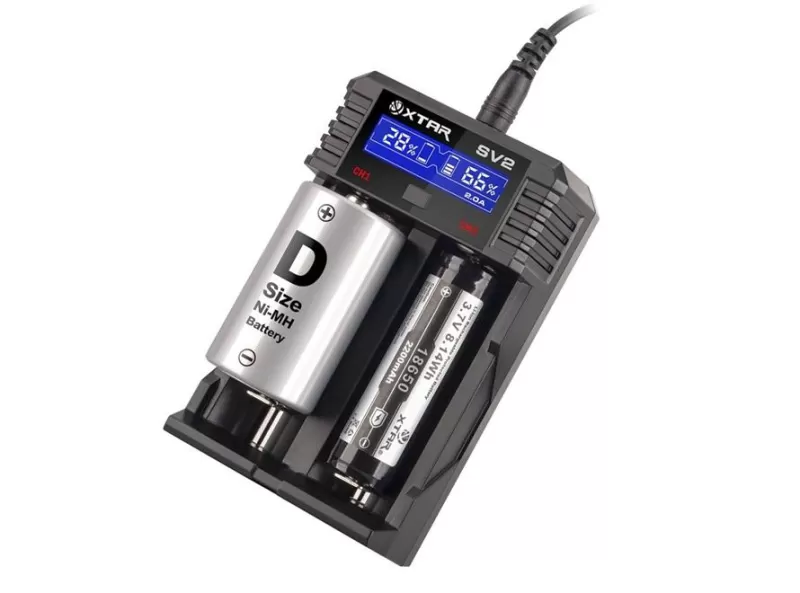

XTAR ROCKET SV2 Charger
100-240VAC Adapter
12VDC Car Adapter
User Manual
Warranty Card
