Description

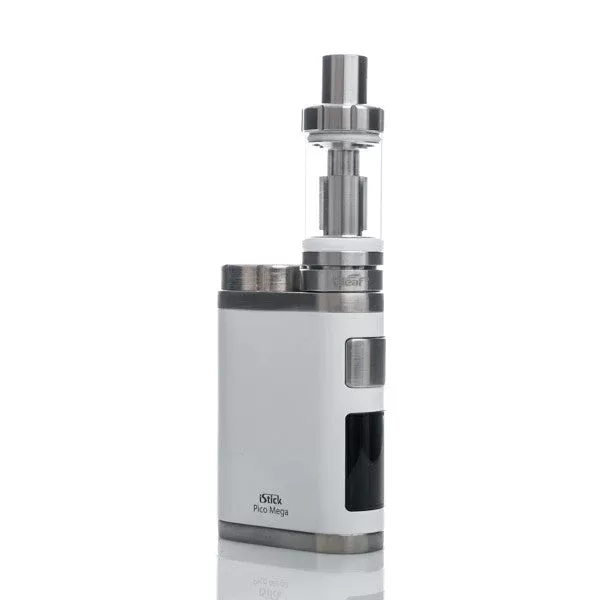

The Eleaf iStick Pico Mega 80W TC Starter Kit is an upgraded version of iStick Pico, contains a 80W Pico Mega mod, and a 4.0ml Melo 3 Atomizer. It can be powered by a 26650 cell or a 18650 cell when inserted with the battery sleeve. With a 18650 battery, the max output power is 75W, and the max ouput power can be 80W only when 26650 battery is high rate (continuous discharge current should be above 35A). Updated with the new firmware which features a simpler interface for VW mode, a Smart mode for easy operation and a custom logo for fun, it supports VW/Bypass/TC-Ni/TC-Ti/TC-SS/TCR Mode. When used with newly added NotchCoil, the Melo 3 / Melo 3 Mini atomizer is the best match for iStick Pico Mega.Quick Links: High Amp 18650 BatteriesFeatures: Eleaf iStick Pico Mega Mod Dimensions: 53.5 x 31.5 x 73.5mm
Thread type: 510 thread
Cell type: High-rate 18650 cell (Continuous discharge current should be above 25A);
High-rate 26650 cell (Continuous discharge current should be above 35A)
Output mode: Smart/VW/Bypass/TC(Ni,Ti,SS,TCR-M1,M2,M3) mode
Output wattage: 1 – 80W
Resistance range: 0.05 – 1.5ohm (TC modes); 0.1 – 3.5ohm (Smart/VW/Bypass mode)
Temperature range: 100－315℃/200－600℉ (TC modes)
New Firmware V1.01 for VW Mode
Screw Battery Cover
Aluminum Alloy Construction Eleaf Melo 3 Atomizer Dimensions: 22 x 22 x 65mmm
4.0ml Tank Capacity
22mm Diameter
Hidden Adjustable Airflow
Convenient Top Fill
Stainless Steel and Glass Tank Construction
Delrin Lined Drip Tip Package Includes: 1 x iStick Pico Mega Mod
1 x Melo 3 Atomizer
1 x EC NC 0.25ohm Coil Head
1 x EC 0.3ohm Coil Head
1 x EC 0.5ohm Coil Head
4 x Seal Ring
1 x Battery Sleeve
1 x USB Cable
2 x User Manual
